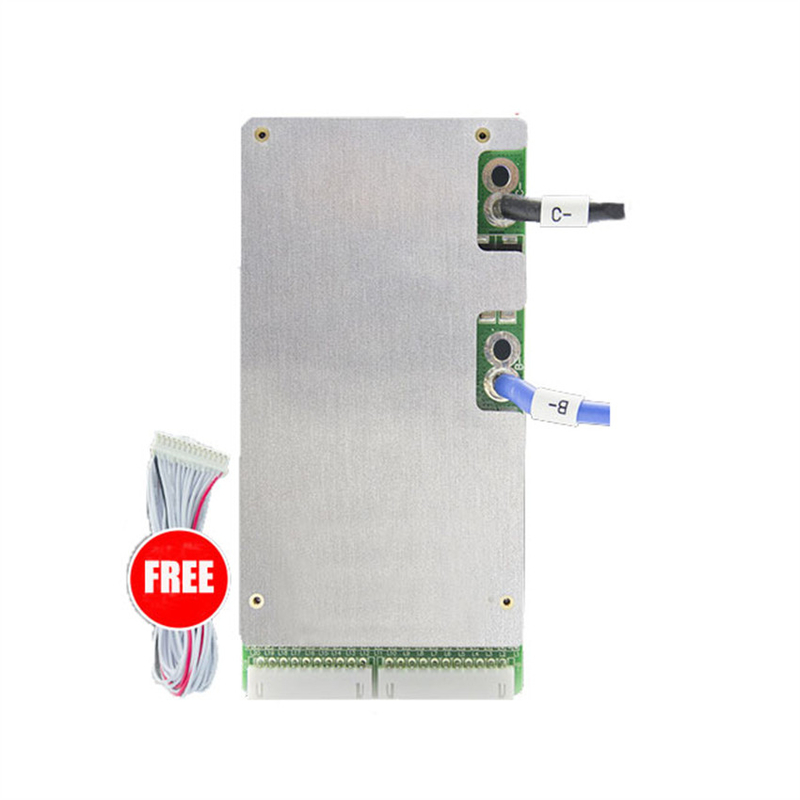

50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection
  • 50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection
  • 50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection
  • 50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection
  • 50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection
  • 50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection
50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection

50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection

Place of Origin China
Brand Name XUWEN
Certification CE,FCC,RoHS,UN38.3,MSDS
Model Number 30A 40A 50A 20S 60V 72V Li Ion LiFePO4 BMS
Product Details
Series::
20S
Board Thickness::
10mm
Min. Line Width::
0.1mm
Size::
128*63*10mm
Discharge Current::
30A 40A 50A
Copper Thickness::
2mm
High Light:

72V LiFePO4 BMS Battery Management System

,

60V LiFePO4 BMS Battery Management System

,

50A LiFePO4 Battery Management System

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
To be negotiated
Packaging Details
Packed in export carton Box
Delivery Time
To be negotiated
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000000pcs/month
Product Description

30A 40A 50A 20S 60V 72V Li Ion LiFePO4 BMS Battery Management System With Temperature Protection And Balance



Continuous discharge current
30A
40A
50A
Discharge over current protection
2~4 times of continuous discharge current
Mosfet
<20mΩ
Charge current
20A
20A
30A
Charge voltage
Lifepo4 battery:series*3.65V Li ion battery: series*4.2V
Over charge protection:
Balance voltage:
Detection voltage: Lifepo4: 3.75±0.05V Li ion: 4.25±0.05V
Start voltage: Lifepo4: ≥3.5V Li ion: ≥4.18V
Detection delay time: 800mS
Recovery voltage: Lifepo4: <3.5V Li ion: <4.18V
Recovery voltage: Lifepo4: 3.55±0.05V Li ion: 4.15±0.05V
Balance current: 20-30mA
Over discharge protection:
Over current protection:
Detection voltage: Lifepo4: 2.2±0.1V Li ion: 2.8±0.1V
Detection current: 2~4 times of continuous discharge current
Detection delay time: 500~1500mS
Detection delay time: 100mS
Recovery voltage: Lifepo4: 2.7±0.1V Li ion : 3.0±0.1V
Recovery condition: Charge activate
Short protection:
Temperature protection
Trigger condition: exterior load short circuit
Charge discharge high temperature protection: 75±5℃
Detection delay time: 300uS

Recovery condition: Take off load






item
value
Model Number
LFP-412200
Place of Origin
China

Guangdong
Brand Name
CL-RD
Base Material
Glass fiber
Copper Thickness
2mm
Board Thickness
20mm
Min. Hole Size
0.25mm
Min. Line Width
0.1mm
Min. Line Spacing
0.12mm
Surface Finishing
oxidation
Board Size
n/a
Size
230*105*20mm
Series
4S 8S
Discharge current:
100A 120A 150A 200A
Balance current:
150mA
NTC Temperature control:
Yes
reserved weak current switch
yes
Common port:
Yes
Application
the inverter, electric bicycles and the electric motorcycles



50A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection 050A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection 150A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection 250A 20S 60V 72V LiFePO4 BMS Battery Management System With Temperature Protection 3
