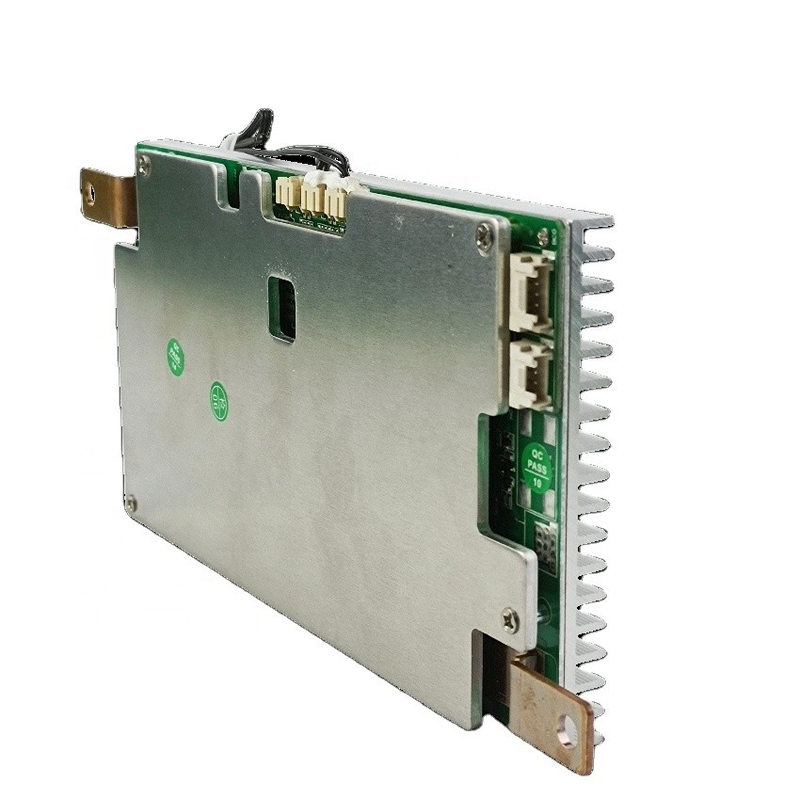

Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A
  • Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A
  • Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A
  • Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A
Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A

Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A

Place of Origin China
Brand Name XUWEN
Certification CE,FCC,RoHS,UN38.3,MSDS
Model Number 3s 4s 12V 100A 150A 200A Li-ion LIFEPO4 BMS
Product Details
20A Size::
230*105*20mm
Base Material::
Glass Fiber
Norminal Voltage::
12v
Common Port::
Yes
Application::
Solar Power
Charging Voltage::
14.6V
High Light:

100A LiFePO4 BMS Battery Management System

,

150A LiFePO4 BMS Battery Management System

,

200A BMS Battery Management System LIFEPO4

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
To be negotiated
Packaging Details
Packed in export carton Box
Delivery Time
To be negotiated
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
100000pcs/month
Product Description

3s 4s 12V 100A 150A 200A Li-Ion LIFEPO4 BMS Battery Management System Smart BT BMS With Balance



Items
Min.
Max.
Unit
Description
Working humidity
-20
+70
℃
Normal working temperature range
Storage temperature
-40
+85
℃
Humidity
Continuous discharge current
200A
Discharge over current protection
2~3 times of continuous discharge current



Mosfet
<20mΩ
Charge current
200A
Charge voltage
series*3.65V



Over charge protection:
Balance voltage:



Detection voltage: 3.75±0.05V
Start voltage: ≥3.5V



Detection delay time: 500~2000mS
Recovery voltage: <3.5V



Recovery voltage: 3.55±0.05V
Balance current: 120~180mA



Over discharge protection:
Over current protection:



Detection voltage: 2.2±0.1V
Detection current: 2~3 times of continuous discharge current



Detection delay time: 4000~6000mS
Detection delay time: 500~1500mS



Recovery voltage: 2.7±0.1V
Recovery condition: disconnect charger



Short protection:
Temperature protection



Trigger condition: exterior load short circuit
Charge discharge high temperature protection: customized



Detection delay time: 100~400uS




Recovery condition: Take off load






Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A 0

Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A 1



 Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A 2

Balance LiFePO4 BMS Battery Management System 3s 4s 12V 100A 150A 200A 3
