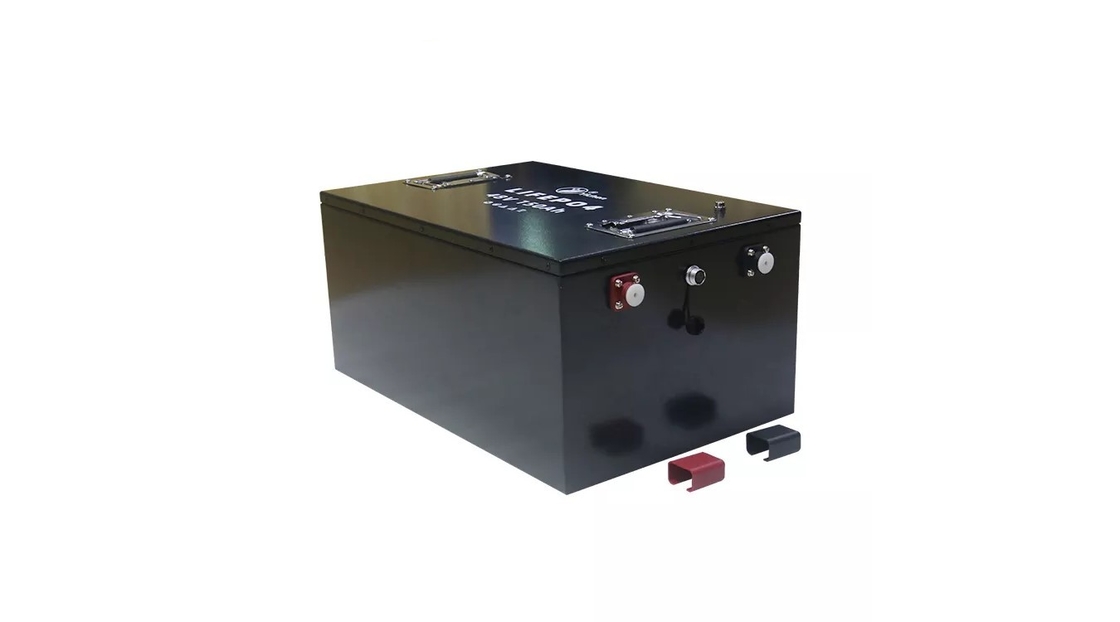

60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS
  • 60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS
  • 60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS
  • 60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS
  • 60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS
60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS

60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS

Place of Origin China
Brand Name XUWEN
Certification CE, MSDS, UN38.3
Model Number Li-ion lifepo4
Product Details
Battery Size::
Lifepo4
Weight::
50kgs
The Charging Ratio::
0.2C To 57.6V, Then 57.6V
The Discharge Rate::
1C
Nominal Voltage::
51.2V
Nominal Capacity::
60Ah
Specific Energy::
3072Wh
Cycle Life::
Above 3000 Time, DOD80%
High Light:

Lifepo4 Golf Cart Battery Pack

,

Golf Cart Battery Pack 48V

,

BMS LiFePO4 Battery Packs

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
To be negotiated
Packaging Details
Each battery cell in one box
Delivery Time
To be negotiated
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3000 Piece/Pieces per Month
Product Description

60ah 100ah 200ah lifepo4 lifep golf cart power storage battery pack lithium ion 48v 48 v volt deep cycle with BMS



Specification
Item
Value
Warranty
5 years
Application
Golf Carts, Electric Folklifts
Battery Size
LiFePO4 48V 60Ah
Brand Name
    XUWEN
Certification
CE, MSDS, UN38.3
Model Number
GC51260
Place of Origin
Guangdong, China
Weight
50kg
Nominal Voltage
51.2V
Nominal Capacity
60Ah
Specific Energy
3072Wh
Cycle Life
Above 3000 time, DOD80%
Internal Resistance
≤60
Charge Mode
0.2C to 57.6V, then 57.6V,charge current to 0.02C (CC/CV)
Size
430*410*180mm
Terminal
320A Ander
OEM/ODM
Acceptable
MOQ
10 PCS
60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS 0

Customizable temperature protection control circuit
When the temperature of the battery is below 0°C , it's charge and discharge efficiency will decrease. And the battery's life will be reduced. At this time, the low temperature protection of the BMS will take effect . When the temperature is too low , the BMS will forcibly interrupt the charge and discharge process to protect the battery. Besides, we have added the function of low temperature heating . When detecting that the battery is in an environment below 0 ℃ , the circuit board will heat the battery slowly to create a suitable charging and discharging environment for the battery.







60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS 1

Active equalization module

Besides, we have added the active equalization module . This module can ensure that the voltage difference between cells is less than 5mV. This will greatly extend the battery life and ensure that the battery still have perfect voltage consistency after five years of operation.





 60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS 2

60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS 3

60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS 4

60ah 100ah 200ah Lifepo4 Golf Cart Battery Pack 48V Deep Cycle With BMS 5
