| Place of Origin | China |
| Brand Name | XUWEN |
| Certification | UN38.3 CE MSDS |
| Model Number | 48V 200ah House (villa) Wall Battery System |

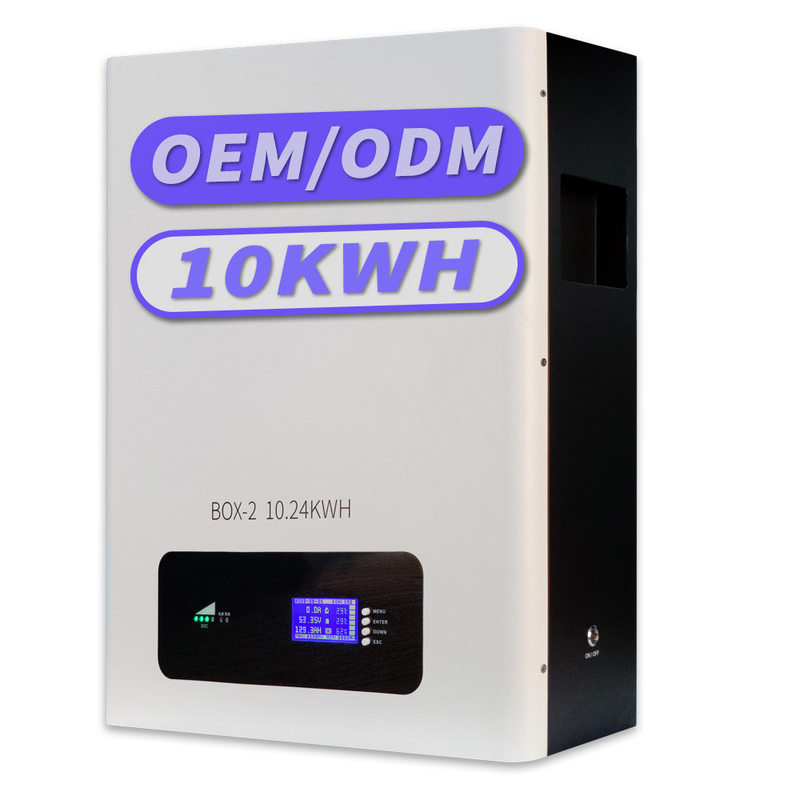

48V 200ah House (villa) Wall Battery System 5kwh 10kwh Lithium Ion Phosphate Storage LiFePO4 Battery Packs
|
Battery Input Data
|
||||
|
Battery Type
|
Lead-acid or Li-lon
|
|||
|
Battery Voltage Range (V)
|
40~60V
|
|||
|
Max. Charging Current (A)
|
190A
|
210A
|
240A
|
|
|
Max. Discharging Current (A)
|
190A
|
210A
|
240A
|
|
|
Charging Curve
|
3 Stages / Equalization
|
|||
|
External Temperature Sensor
|
Optional
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|||
|
PV String Input Data
|
||||
|
Max. DC Input Power (W)
|
10400W
|
13000W
|
15600W
|
|
|
PV Input Voltage (V)
|
550V (150V~800V)
|
|||
|
MPPT Range (V)
|
200V-650V
|
|||
|
Start-up Voltage (V)
|
160V
|
|||
|
PV Input Current (A)
|
13A+13A
|
26A+13A
|
26A+13A
|
|
|
No.of MPPT Trackers
|
2
|
|||
|
No.of MPPT Trackers
|
1+1
|
2+1
|
2+1
|
|
|
AC Output Data
|
||||
|
Rated AC Output and UPS Power (W)
|
8000W
|
10000W
|
12000W
|
|
|
Max. AC Output Power (W)
|
8800W
|
11000W
|
12000W
|
|
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|||
|
AC Output Rated Current (A)
|
12A
|
15A
|
18A
|
|
|
Max. AC Current (A)
|
18A
|
23A
|
27A
|
|
|
Max. Continuous AC Passthrough (A)
|
50A
|
|||
|
Output Frequency and Voltage
|
50/60Hz; 230/400Vac (Three phase)
|
|||
|
Grid Type
|
Current Harmonic Distortion
|
|||
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
|||
|
Efficiency
|
||||
|
Max. Efficiency
|
97.60%
|
|||
|
Euro Efficiency
|
97.00%
|
|||
|
MPPT Efficiency
|
99.90%
|
|||
|
Protection
|
||||
|
PV Input Lightning Protection
|
Integrated
|
|||
|
Anti-islanding Protection
|
Integrated
|
|||
|
PV String Input Reverse Polarity Protection
|
Integrated
|
|||
|
Insulation Resistor Detection
|
Integrated
|
|||
|
Residual Current Monitoring Unit
|
Integrated
|
|||
|
Output Over Current Protection
|
Integrated
|
|||
|
Output Shorted Protection
|
Integrated
|
|||
|
Output Over Voltage Protection
|
Integrated
|
|||
|
Surge protection
|
DC Type II / AC Type II
|
|||
|
Certififications and Standards
|
||||
|
Grid Regulation
|
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
|
|||
|
Safety EMC / Standard
|
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
|
|||
|
General Data
|
||||
|
Operating Temperature Range (ºC )
|
-25~60ºC , >45ºC Derating
|
|||
|
Cooling
|
Smart cooling
|
|||
|
Noise (dB)
|
<30 dB
|
|||
|
Communication with BMS
|
Communication with BMS
|
|||
|
Weight (kg)
|
36.8
|
|||
|
Size (mm)
|
422W×658H×281D
|
|||
|
Protection Degree
|
IP65
|
|||
|
Installation Style
|
Wall-mounted
|
|||
|
Warranty
|
5 years
|
|||
Company profile
Business Type: Manufacturer/Factory.
Main Products: Smart BMS System, LiFePO4 BMS Battery Management System, Lithium BMS System, BMS PCM Battery Protection Board, Common Port BMS, LTO Battery BMS, Active Balance BMS, LiFePO4 Battery Cell, Lithium Ion Battery Cell, Lithium Ion Battery Cell, LTO Battery Cell, LiFePO4 Battery Packs, Lithium Ion Battery Packs, Lithium Battery Tester, Portable Power Station, Power Inverter, Battery Charger.
Year of Establish: 2015.
