LiFePO4 Battery Cell
>
|
| Place of Origin | China |
| Brand Name | XUWEN |
| Certification | CE |
| Model Number | 32650 5.5ah Lifepo4 Battery Cell |

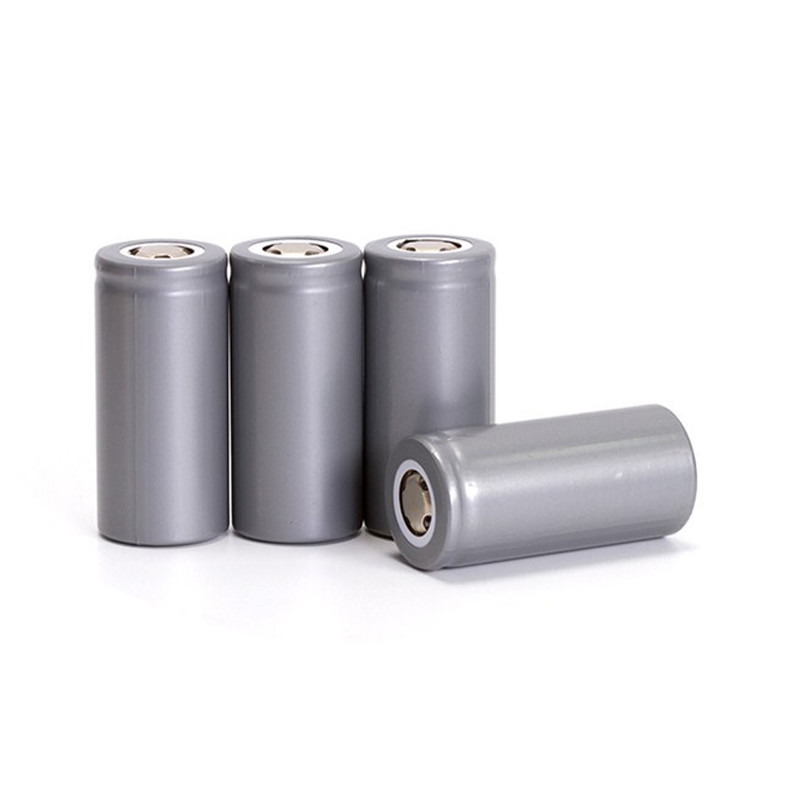

32650 5.5ah Lifepo4 Battery Cell 7000mAh 32700 LiFePO4 Solar Storage Battery Cell
| NO. | Item | General Parameter | Remark | |
| 1 | Model | IFR 32650-3.2V 6000mAh | Single cell | |
| 2 | Casing material for single cell | Nickel plated steel | ||
| 3 | Nominal capacity(0.2C5A) | 6000mAh | ||
| 4 | Minimum Capacity(1C5A) | 5500mAh | ||
| 5 | Nominal voltage | 3.2V | Work voltage: 3.20V | |
| 6 | Max.Charge voltage | 3.65V | Single Ave. charge Voltage: 3.65V | |
| 7 | Cut-off voltage | 2.5V | Single Ave. Discharge Voltage: 2.5V | |
| 10 | Max. Continuous discharge current | 16.5A | ||
| 11 | Peak discharge current | 55A | ||
| 12 | Battery dimension | 33(diameter)*70(height)mm | ||
| 13 | Total weight(Approx.) | About 0.16kg | ||
| 15 | Charge method (CC/CV) | Standard | 0°C~45°C | |
| Discharge | -20°C~60°C | |||
| Storage | -20°C~45°C | |||
FAQ
1,Q: What's the main product in XUWEN?
A: Rechargeable battery: Li-ion, Lipo battery and power battery pack.
2,Q: What is overcharge?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP
service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
