Lithium Battery Tester
>
|
| Place of Origin | China |
| Brand Name | ZKE |
| Model Number | EBC-B20H 12-72V lithium Battery Test battery capacity tester |
EBC-B20H 12-72V lithium Battery Test battery capacity tester Online Computer Software Support external charger
Lithium Battery Tester Description:
1. The tester is designed for the capacity test of 12-72V battery packs.
2. You can set up discharging current and cut-off voltage.
3. The tester supports automatic discharge and with a portable external battery charger, it allows automatic charge.
4. Connect it to a computer for a complete test graph and extensive functions.
Lithium Battery Tester Parameter:
| Keywords: | Lithium Battery Tester | Product Name: | Battery Capacity Tester |
|---|---|---|---|
| Function: | Test Capacity Voltage Current | Application: | Lithium Battery,acid-lead Battery |
| Usage: | Reference Manual | Color: | White |
| Voltage: | 36-110V | Discharge Current: | 0.1-20A |
| Power Supply: | Voltage:100V AC~256V AC | Accuracy: | 0.1% |
| Selling Units: | Single Item | Single Package Size : | 55X38X32 Cm |
| Single Gross Weight: | 10 Kgs | Package Type: | Ployfoam And Bybble Bag 5-ply Carton |
EBC-B20H is a capacity tester for battery packs. It is suitable for battery pack capacity testing in the range of 12V-72V. It has
built-in discharge load resistance, supports chargers for external battery packs, automatically switches charging and discharging,
and supports online computer curve drawing .
1. During the discharge test , connect the battery pack to the "battery" connector of the tester through the clamp wire.
2. In the charging test , in addition to connecting the battery pack, the output end of the charger supporting the battery pack
needs to be connected to the “charger” interface of the tester. Turn on for charging. When it is detected that the charging
current is less than the set value, it is determined to be full and the charging is turned off. (The tester does not control the
charging current and voltage, only for detection and on-off control).
3. Automatic charging and discharging , the tester supports setting up to 5 steps, each step can be charging mode (requires
external charger), or discharging mode. The charging and discharging test can be performed automatically by setting multiple
steps. When connected to a computer, it can be started by software control and record the voltage and current curve.

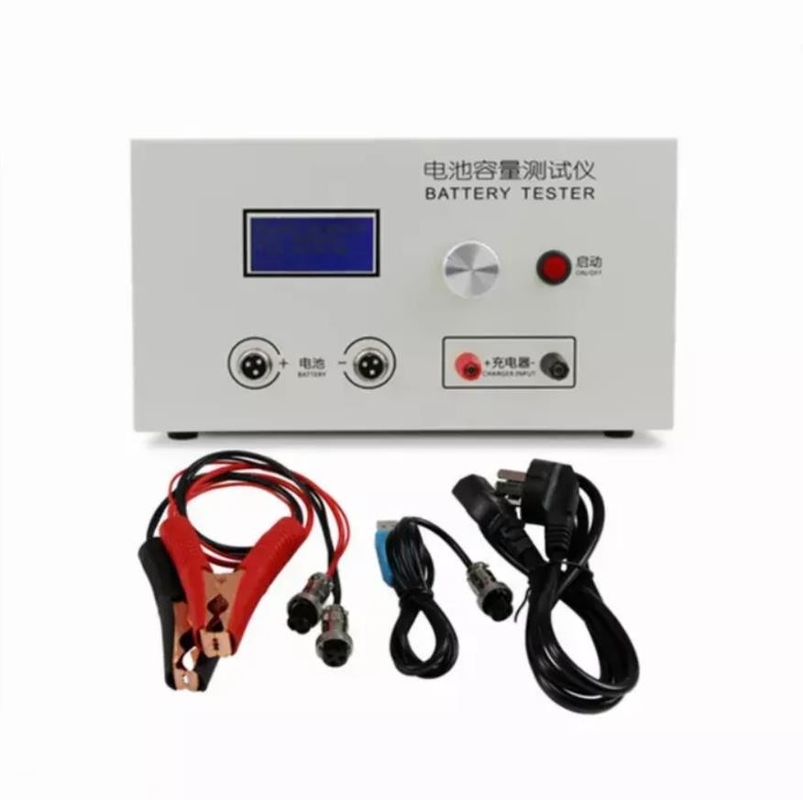

Product details :
1. a tester
2. One online line
3. A power cord
4. Pair of test clamps
