Lithium Battery Tester
>
|
| Place of Origin | China |
| Brand Name | SN |
| Model Number | 200A 12V Lithium Battery Tester |

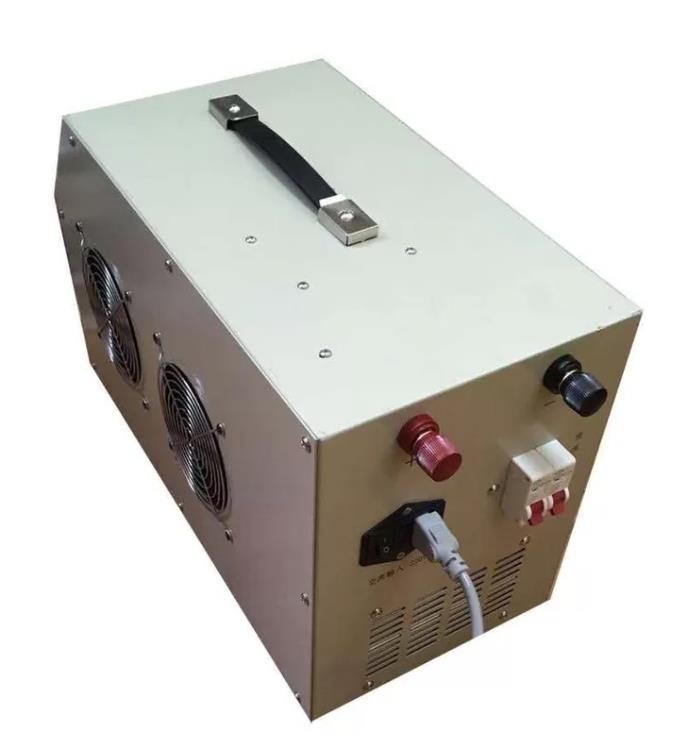

Lipo Capacity 20000W 200A 12V Lithium Battery Tester With Segment LCD Battery capacity tester
Lithium Battery Tester Description:
1. The automatic stop discharge protection function is complete when the discharge time is up; the lower limit of the
set total voltage is reached or the load connection is abnormal; the discharge will automatically stop and alarm.
2. The battery's stop protection voltage is arbitrarily set, the discharge current is arbitrarily set, and the discharge stop time is arbitrarily set.
3. Real-time display of discharge voltage, discharge current, discharge time, and battery discharge capacity when discharging.
Lithium Battery Tester Parameter:
| MODEL | |
| Working Voltage | AC220V |
| Battery pack nominal voltage | 12V |
| Discharge current | 1-50A (setting freely) |
| Large current solution: | can be parallel machine discharge or custom. |
| Current detection accuracy | 1% |
| Constant discharge voltage rage | 12V±18% |
| Accuracy of the total voltage | 0.50% |
| Battery discharge time | 0-999minutes (setting freely) |
| Cut-off protection voltage | 1-12V set freely |
| Cooling mode | forced air cooling |
| Discharge load | Imported ceramic PTC |
| Display mode: | LED liquid and button |
| Application | Acid-lead, Lithium battery |
| Weight | 10 kg |
| Mainframe size: | 220*230*500mm. |
| Package | Carton/wooden case/AL case |
| Remark | Can customer-made as per your request |
