Programmable BMS 8s 24v 100A , 8s Lifepo4 BMS with UART port
  • Programmable BMS 8s 24v 100A , 8s Lifepo4 BMS with UART port
  • Programmable BMS 8s 24v 100A , 8s Lifepo4 BMS with UART port

Programmable BMS 8s 24v 100A , 8s Lifepo4 BMS with UART port

Place of Origin China
Brand Name XUWEN
Certification CE,FCC,RoHS,UN38.3,MSDS
Model Number 100A Lifepo4 smart BMS Battery Management System
Product Details
Base Material::
Glass Fiber
Product Name::
8S 24V 100A LiFePO4 BMS With BT
Discharge Current::
100A
Series::
8S
Temp Sensor::
2
Function::
Battery Protection Board
High Light:

Programmable BMS 8s 24v 100A

,

Lifepo4 BMS 8s 24v 100A

,

UART Port 8s Lifepo4 BMS

Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
To be negotiated
Packaging Details
Packed in export carton Box
Delivery Time
To be negotiated
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
100000pcs/month
Product Description

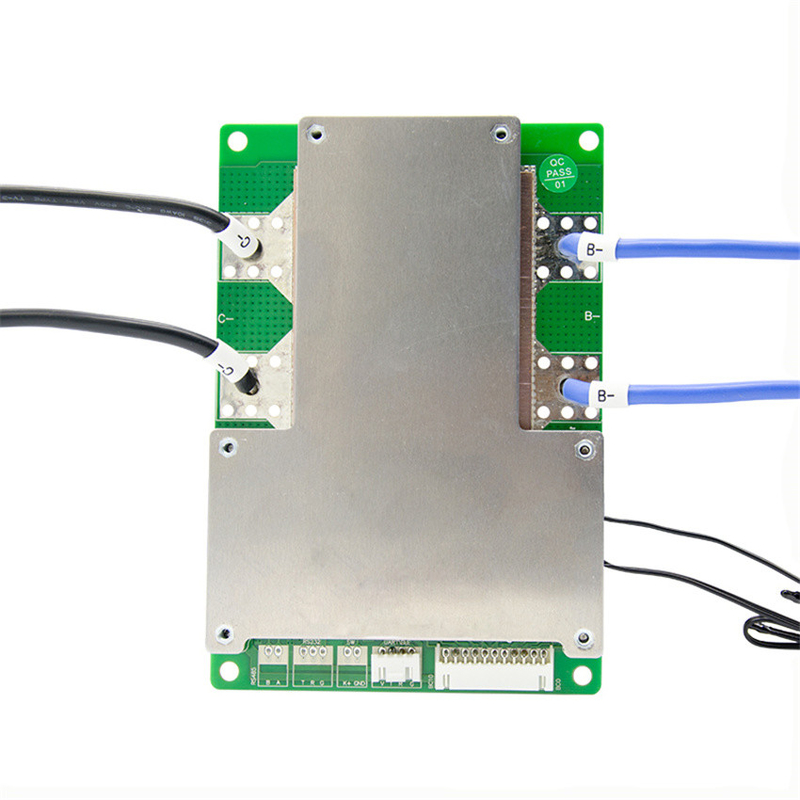

Programmable 8S 24V 100A Lifepo4 smart BMS Battery Management System with UART port and BT module 3.2V PCB PCM



What BT Communication Module can do?
With BT Communication Module , the APP Software can be connected , and all information of the Battery pack can display on your
Mobile Phone . and you can set some parameters on Your APP software :Over-charge protection voltage , Over-discharge protection
voltage, Over Current Protection, Temperature protection and Battery capacity.

Adjustable BMS can set up Voltage and Current
You could get the SOC, RM, RSOC, Voltage, Current, Temperature of battery pack through UART connect
Please contact with us for more information





Items
Min.
Type
Max.
Unit
Description
Working humidity
-20

+70
Normal working temperature range
Storage temperature
-40

+85
Humidity<90%, No condensation
Function
Test Project

Specification

Unit
Min
Middle
Max
Working Voltage
Voltage Scale
21.6

30
V
Working Current
Charge Current


100
A
Discharge Current


100
A
Charge Protection
Charger Voltage(CC-CV)
30
V
Over Charge Protection Voltage
3.7
3.75
3.8
V
Over Charge Protection Delay Time

1000
1500
mS
Over Charge Protection Release Voltage
3.55
3.6
3.65
V
Over discharge protection
Over Disharge Protection Voltage
2.6
2.7
2.8
V
Over Discharge Protection Delay Time

1000
1500
mS
Over Discharge Protection Release Voltage
2.9
3.0
3.1
V
Over Discharge Protection Release Condition
Cut off load or charge
Over current Protection
Charge Over Current Protection

110

A
Charge Over Current Delay Time

5

mS
Charge Release adjustment
Delay 32S release
Discharge Over Current Protection

110

A
Over Current 1 Delay Time

5

mS
Discharge Over Current Release Condition
Delay 32S release
Short Circuit Protection
Short Circuit Protection Delay Time
300
400
500
uS
Short Circuit Release
Cut Off Load Delay Time 5S
Balance Function
Start Voltage

3.4

V
Balance current

45

mA
Over temperature protection when charge
Charge tempeature protection

65

Charge tempeature protection release

55

Discharge tempeature protection

75

Discharge tempeature protection release

65

Internal Resistance
Internal resistance of discharge circuit
/
10
20
mR
Self-power consumption
Normal Mode
/
20
50
uA
Working Temperature
Normal Working Temperature
-20

70
Storage Temperature
humidity less than 90%
-40

85
BMS size
L*W*H
150*102*15
mm
Remark: Above data is for sample only. Customer could adjust the Data through connect c



Programmable BMS 8s 24v 100A , 8s Lifepo4 BMS with UART port 0



RFQ

1.What is the common port and separate port? what is the difference?
We take 13S 48V 15A BMS as an example, common port 15A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connection
port, so the charge current and discharge current are the same 15A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 15A, charge current 8A.

2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, LifePo4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, LifePo4 3.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage (Li-ion 4.25V, LifePo4 3.75V) BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well

3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.

4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.

5. What current BMS should I choose ?
Take 10S 36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 15A for below 350W, 20A for below 500W, 30A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.

6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
