Smart BMS System
>
|
| Place of Origin | China |
| Brand Name | XUWEN |
| Certification | CE,FCC,RoHS,UN38.3,MSDS |
| Model Number | 4S 12v 60A Smart BMS System |

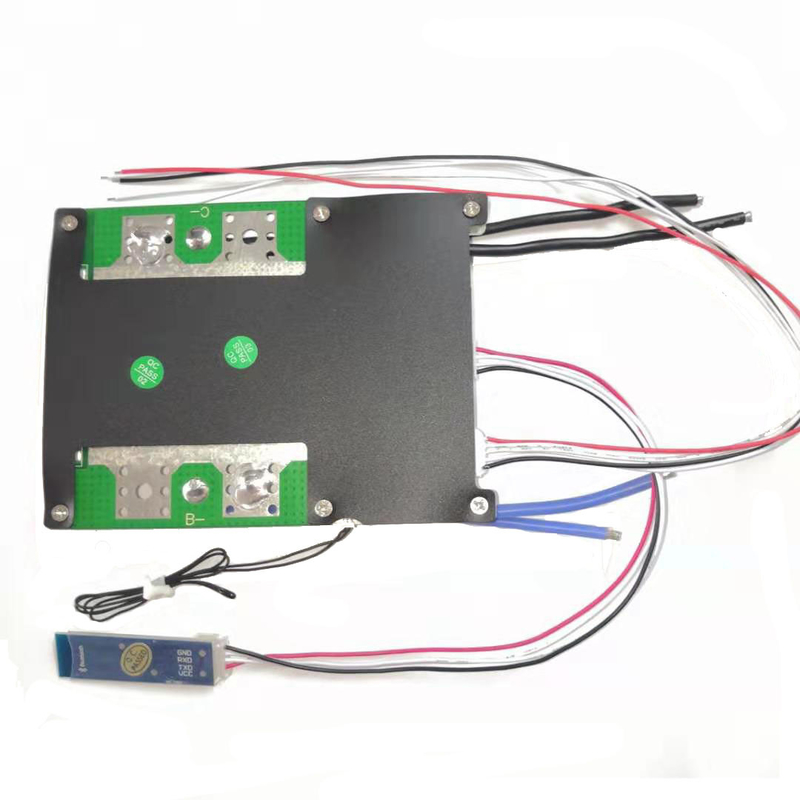

4S 12v 60A Smart BMS System Lifepo4 Battery BMS PCM PCB With UART Communication Module
| Smart BMS current | |||||||||
| Series | Battery Cell | Current | |||||||
| 3S | 3.7V/3.2V | 20A | 30A | 35A | 60A | 80A | 100A | 120A | 150A |
| 4S | 3.7V/3.2V | 20A | 30A | 35A | 60A | 80A | 100A | 120A | 150A |
| 6S | 3.7V/3.2V | 20A | 30A | 40A | 50A | 80A | 100A | ||
| 7S | 3.7V/3.2V | 20A | 30A | 40A | 50A | 80A | 100A | ||
| 8S | 3.7V/3.2V | 20A | 30A | 40A | 50A | 80A | 100A | ||
| 9S | 3.7V/3.2V | 20A | 30A | 40A | 50A | 80A | 100A | ||
| 10S | 3.7V/3.2V | 20A | 30A | 40A | 50A | 80A | 100A | ||
| 11S | 3.7V/3.2V | 20A | 30A | 40A | 60A | 80A | 100A | 120A | |
| 12S | 3.7V/3.2V | 20A | 30A | 40A | 60A | 80A | 100A | 120A | |
| 13S | 3.7V/3.2V | 20A | 30A | 40A | 60A | 80A | 100A | 120A | |
| 14S | 3.7V/3.2V | 20A | 30A | 40A | 60A | 80A | 100A | 120A | |
| 15S | 3.7V/3.2V | 20A | 30A | 40A | 60A | 80A | 100A | 120A | |
| 16S | 3.7V/3.2V | 30A | 40A | 50A | 60A | 80A | 100A | 120A | |
| 17S | 3.7V/3.2V | 30A | 40A | 50A | 60A | 80A | 100A | 120A | |
| 18S | 3.7V/3.2V | 30A | 40A | 50A | 60A | 80A | 100A | 120A | |
| 19S | 3.7V/3.2V | 30A | 40A | 50A | 60A | 80A | 100A | 120A | |
| 20S | 3.7V/3.2V | 30A | 40A | 50A | 60A | 80A | 100A | 120A | |
| 21S | 3.7V/3.2V | 40A | 60A | 80A | 100A | ||||
| 22S | 3.7V/3.2V | 40A | 60A | 80A | 100A | ||||
| 23S | 3.7V/3.2V | 40A | 60A | 80A | 100A | ||||
| 24S | 3.7V/3.2V | 40A | 60A | 80A | 100A | ||||
| 25S | 3.7V/3.2V | 40A | 60A | 80A | 100A | ||||
| 26S | 3.7V/3.2V | 40A | 60A | 80A | 100A | ||||
| 27S | 3.7V/3.2V | 40A | 60A | 80A | 100A | ||||
| 28S | 3.7V/3.2V | 40A | 60A | 80A | 100A | ||||
| 29S | 3.7V/3.2V | 40A | 60A | 80A | 100A | ||||
| 30S | 3.7V/3.2V | 40A | 60A | 80 | 100A | ||||
| Discharge current | 60A | 80A | 100A | 120A |
| Over discharge current protection | 70A | 90A | 110A | 130A |
| MOSFET | ≤10mΩ | ≤10mΩ | ≤10mΩ | ≤10mΩ |
| Charge current | 40A | 60A | 80A | 100A |
| Charging Voltage | 14.4V | 14.4 | 14.4V | 14.4V |
| Over charge protection | Balance Voltage |
| Dection Voltage: 3.75±0.03V | Dection Voltage:≥3.4V |
| Detection Delay Time:1000mS | Release Voltage:<3.4V |
| Release Voltage:3.6±0.025V | Balance Current: 50~60mA |
| Over Discharge Voltage Protection | Over Discharge Current Protection |
| Dection Voltage: 2.7±0.1V | Dection Voltage:150mV |
| Detection Delay Time:1000mS | Detection Delay Time:5mS |
| Release Voltage:2.8±0.1V | Release Condition: Disconnect load/Charge activation |
